JUPITER dual-outlet charging station - 7 to 22 kW with WiFi & 4G

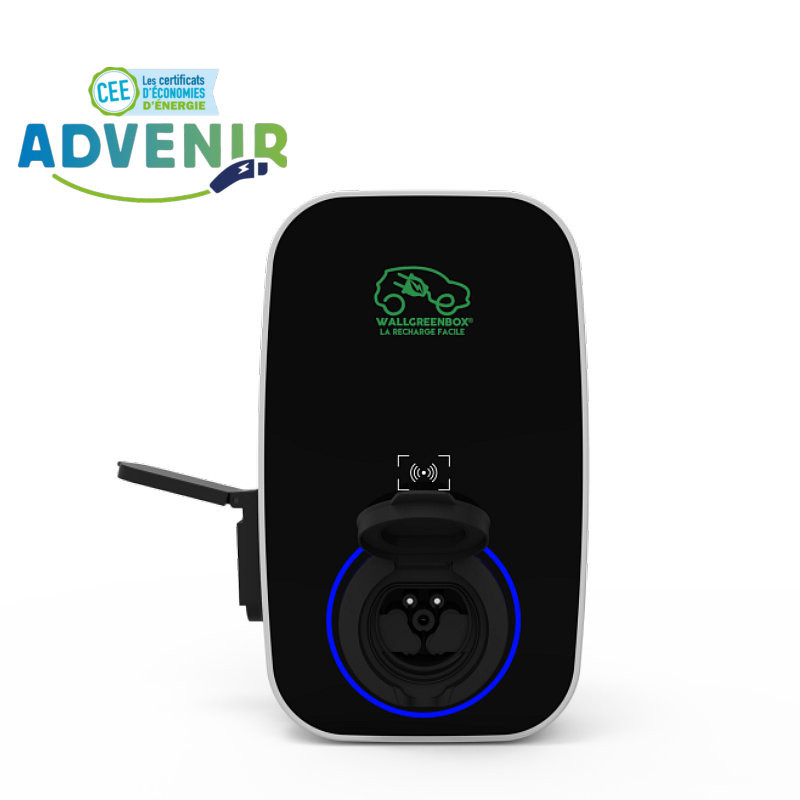

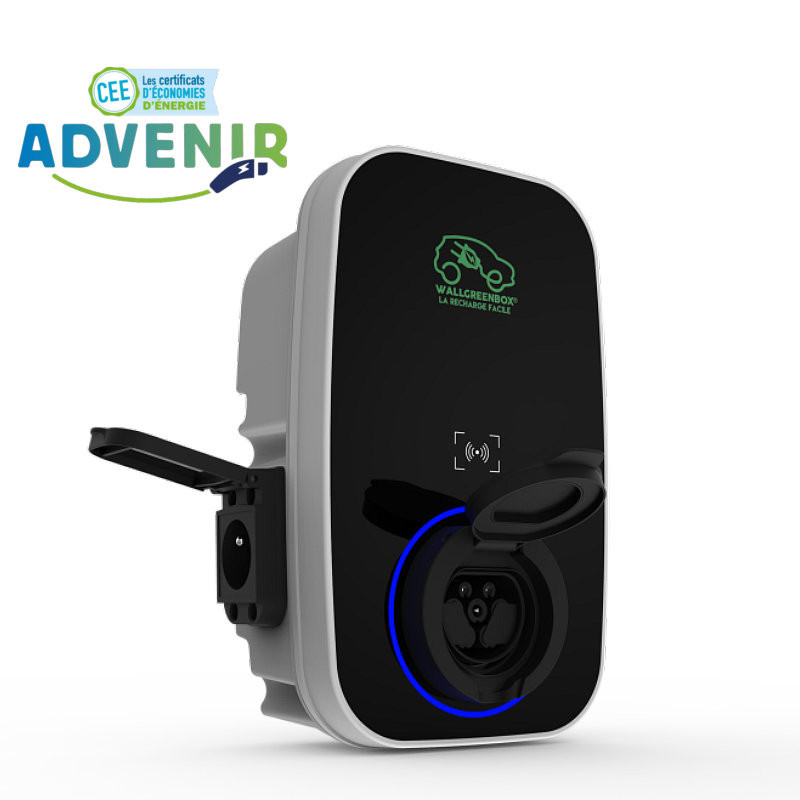

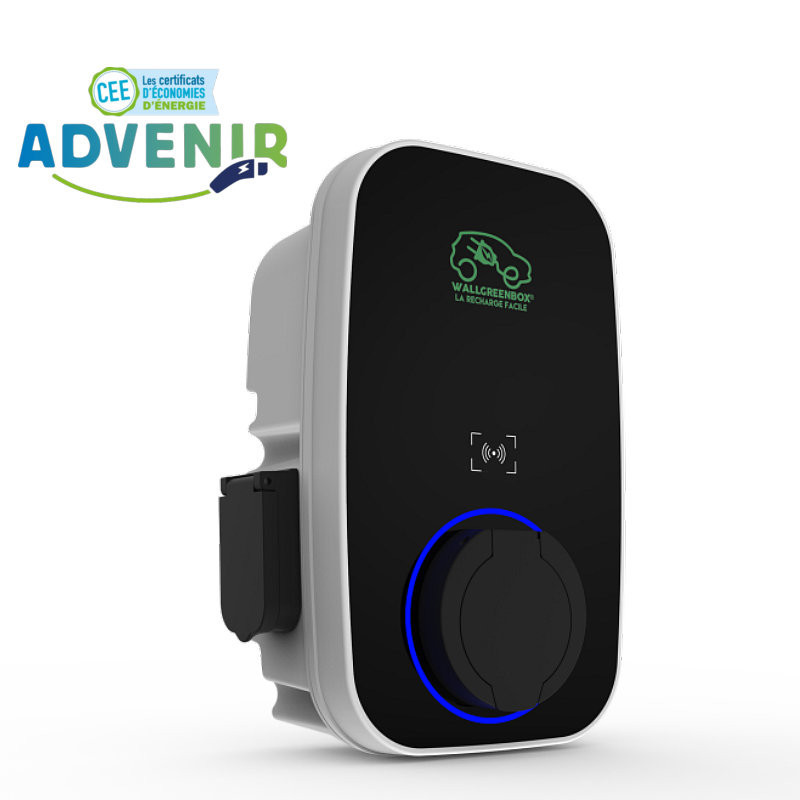

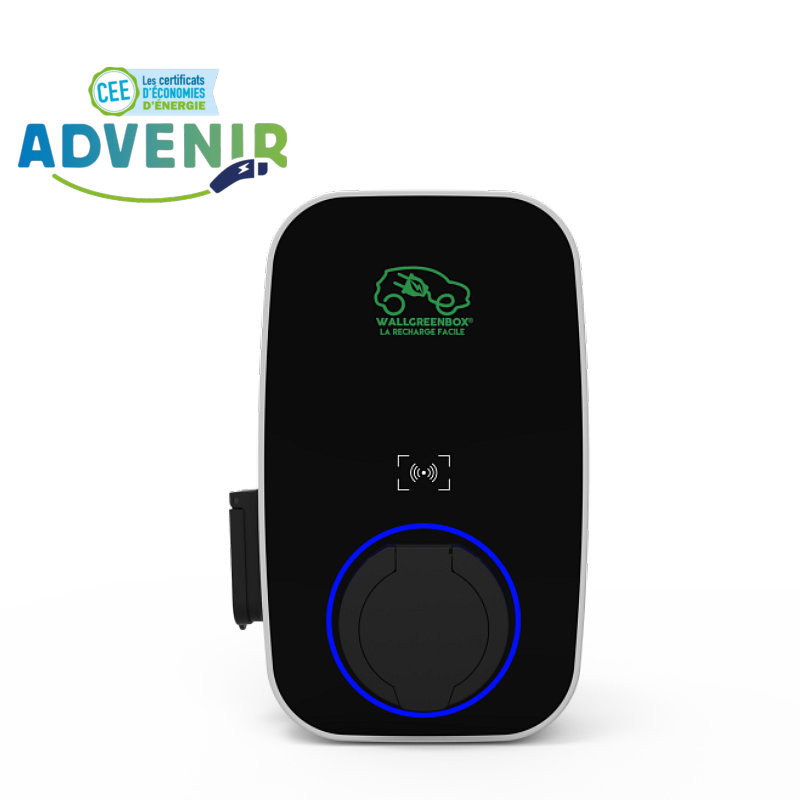

The JUPITER dual-outlet charging station, featuring dynamic and intelligent capabilities, is equipped with a front T2S connector and a side Type E outlet, RFID cards, a 4G SIM card slot, an Ethernet port, and supports the OCPP 1.6 protocol. It also offers load balancing (load shedding), dynamic management of 10 terminals and solar energy charging. Additionally, Wi-Fi connection via a dedicated app is included. It complies with CE, UKCA, RoHS standards and is eligible for the ADVENIR energy savings certificate program.
The OCPP monitoring software via MONTA "home version" is included; for the professional version, please contact us.

Available in 2 versions:
- Single-phase version adjustable up to 7kW + 3.6kW
- Three-phase version adjustable up to 22kW + 3.6kW

Main features:
*T2S socket + 1 Type E socket with safety shutters
*Current (input and output): 32A (adjustable to 16A)
*Power ratings: 3.7 kW / 7.4 kW / 11 kW / 22 kW
*Tri-color LED
*4G / WiFi / Ethernet
*RFID (2 cards included)
*Plug and Charge ISO 15118
*OCPP 1.6 Ethernet / 4G
*Smartlife management application
*Solar energy management
*DLM + DLB (load balancing + group management)
*IP54 and IK10
*Residual current protection (AC 30mA and DC 6mA)
*Class 1 + PEN Protection Module (Earth + Neutral protection)
*Overvoltage / Undervoltage Protection / Temperature Protection / Overcurrent Protection
*Certifications: CE / UK / RoHS and EN IEC 61851, EN 62196 standards
*Operating temperature: -25°C to 50°C – Humidity: 3% to 95% – Altitude: <2000 m

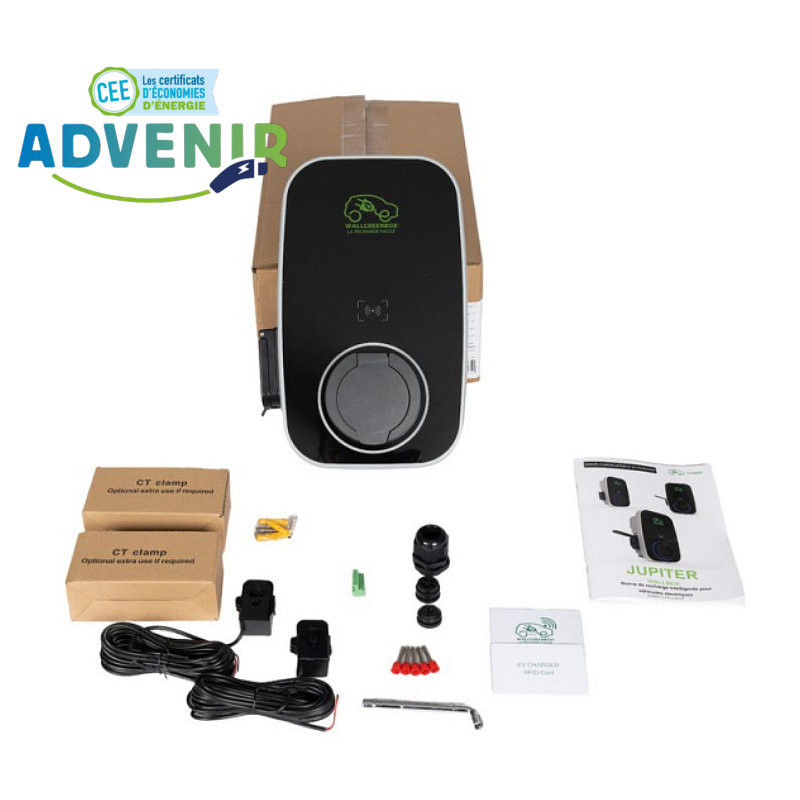

JUPITER box contents:
1 JUPITER unit, 2 RFID cards, 2 or 4 measuring toroids with 5-meter cables (mono/three-phase), wall mounting plate, screws, connection bar for toroids, and cable gland.

Specifications
- Front T2S outlet 7kW / 22kW

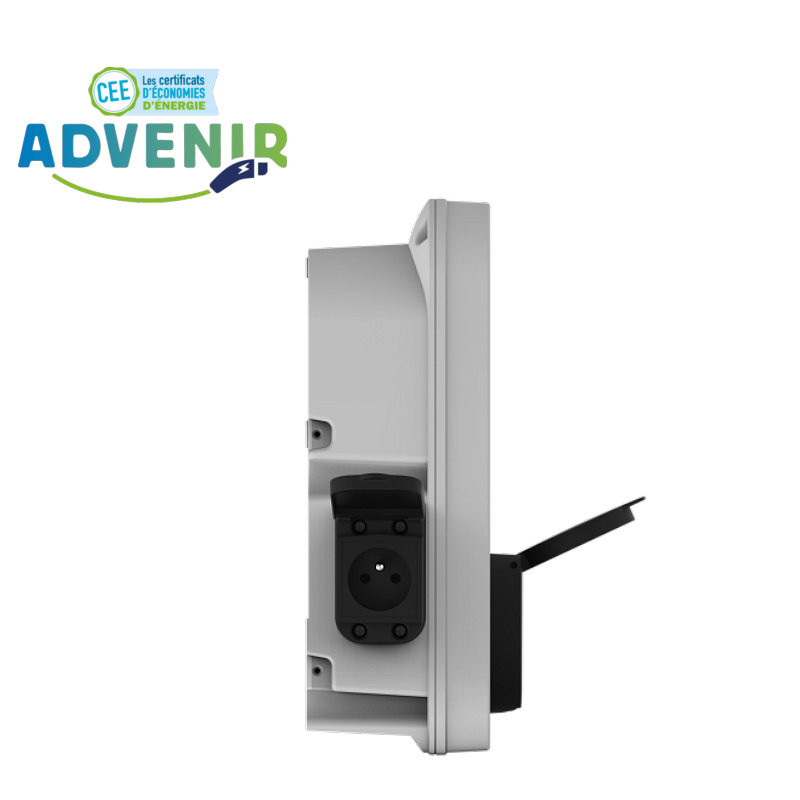

- Side Type E (European) outlet 3.6kW
- Residual current protection (AC 30mA type A, DC 6mA)
- O-Pen Protection (UK)
- Internal current adjustment via switches (16-32A)
- Adjustable power up to 7.4kW (single-phase) / 22kW (three-phase) via Smart App
- Dynamic load balancing (load shedding) with measuring toroid and 5m cable included (CT clamps)
- Balancing and dynamic management of 10 terminals
- Solar energy metering with toroid and 5m cable included (CT clamp)
- Free solar charging (with energy measured by JUPITER)
- Cost-effective charging: off-peak hour programming
- 4 charging modes: Plug and charge – RFID card – Smart App – Programming
- Wi-Fi / Ethernet / SIM 4G connectivity
- OCPP 1.6 standard - Ethernet / 4G
- Free Smart Wi-Fi App developed for JUPITER
- Integrated LED charge status indicator
- CE and UKCA certified · IP65 (case) - IP54 (outlets) and IK10
- Corrosion and fire resistant
- Eligible for tax credit and ADVENIR program
- 2-year warranty

Advanced Smart App features
- Connection to router Wi-Fi
- Charge function and data control on screen, for each connected phase
- Mode switching: RFID / Plug and Charge / Solar / Programming
- Programming of charging cycles / hours
- Input of electrical subscription power – Dynamic load balancing
- Free solar charging with produced energy
- Operating current setting (6 to 32A)
- RFID card number registration
- IP settings and OCPP 1.6 ID configuration
- Charge data recording
- Charger sharing via link (SMS, Email, Messenger, WhatsApp, etc.): Add user / client
- Fleet management of JUPITER chargers by the installer (e.g., for after-sales service or maintenance contract)
