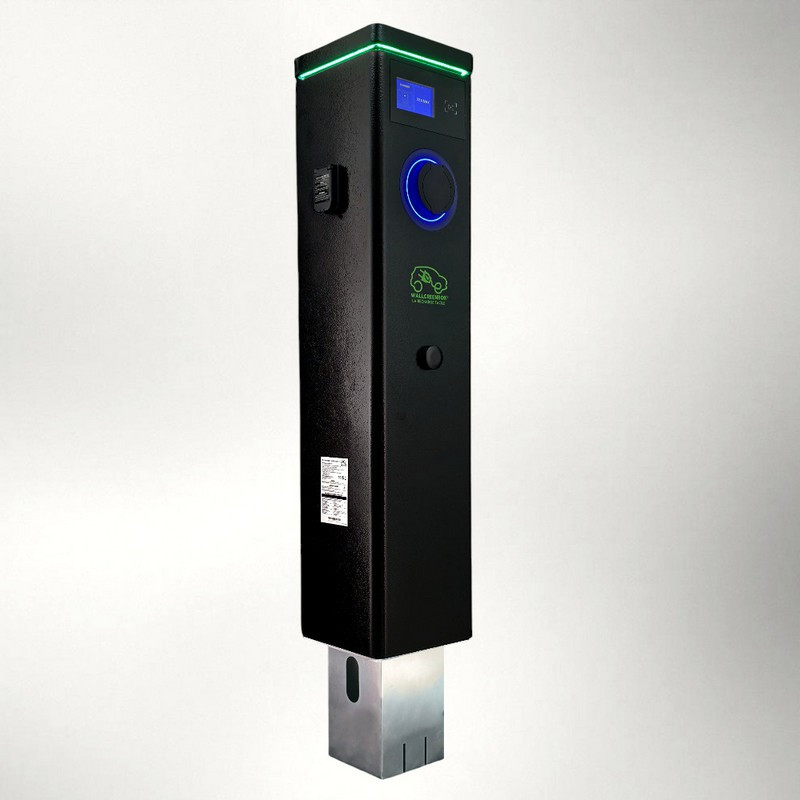

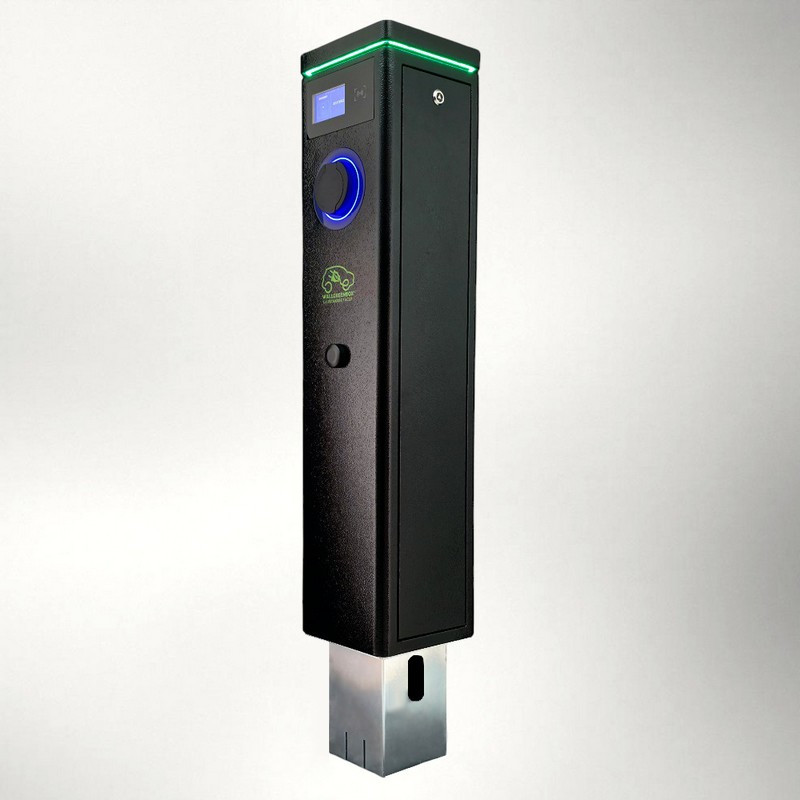

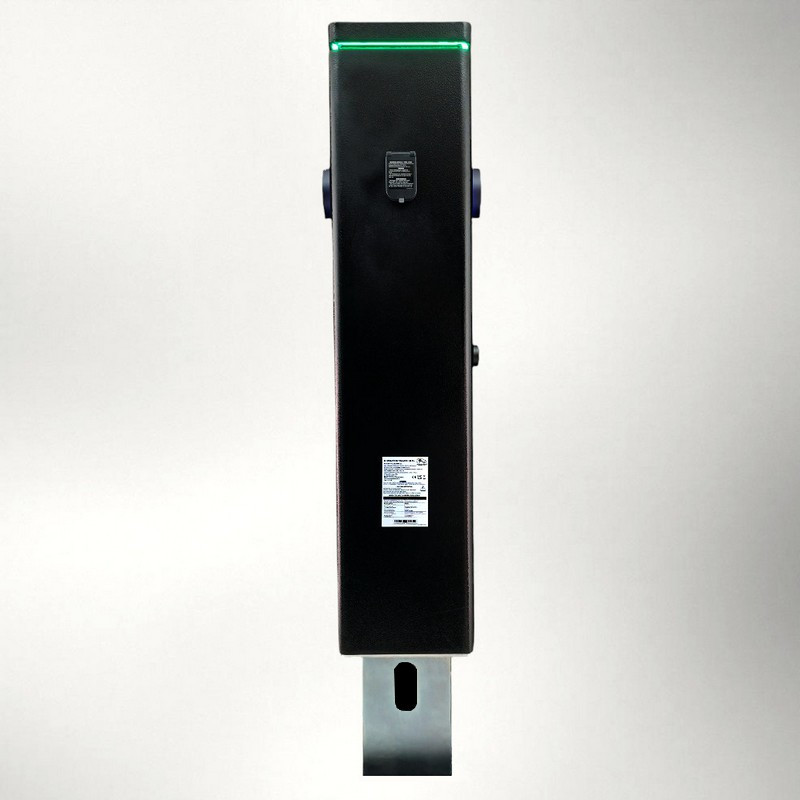

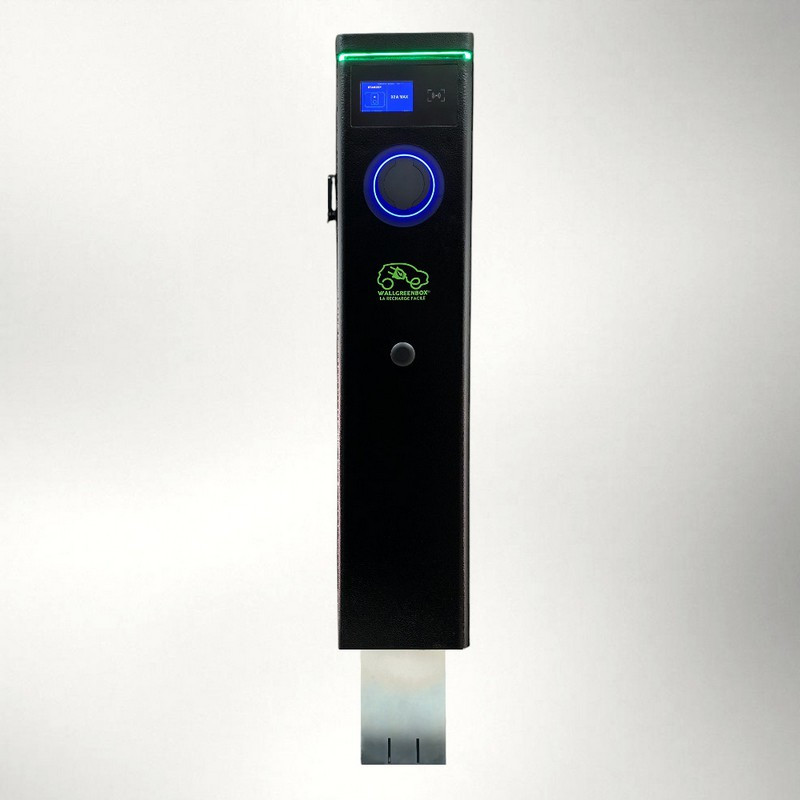

JUPITER Dual Socket T2S Pedestal 2x7kW

THE JUPITER PEDESTAL is equipped with dynamic and intelligent features.

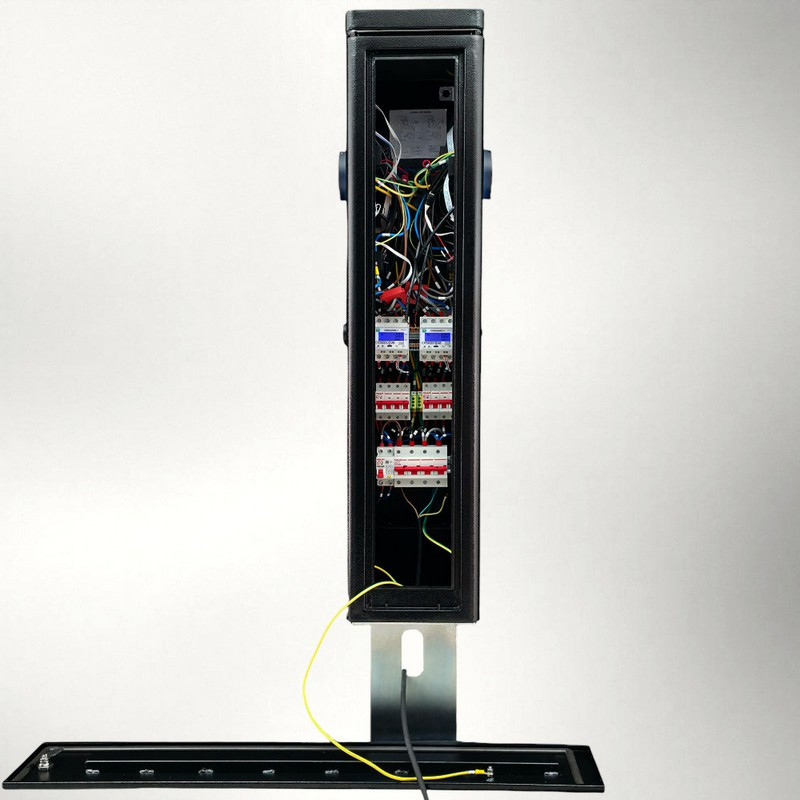

It is fully wired and protected (30mA AC + 6mA DC) internally with:

• 80A main circuit breaker (Cu 2,5 - 50 mm²)
• Sub-circuit breakers
• MID meters
• O-Pen modules
• Independent PCB boards

It is equipped with:

• 2 T2S connectors (one on each side)
• 1 Type E socket
• RFID cards
• Ethernet/WiFi/4G router
• Supports OCPP 1.6 protocol

It also offers load balancing (DLB) from the main panel (400A per phase) with 10 supervised charging points (1 Master - 9 Slaves).
Connection via the included WiFi application.
Compliant with CE, UKCA, RoHS standards and eligible for the ADVENIR Energy Savings Certificate (CEE) program.

OCPP supervision software via MONTA:

• Domestic version included
• Professional version available on request

Available in 2 versions:

• Single-phase charger adjustable up to 2 x 7kW + 3.6kW
• Three-phase charger adjustable up to 2 x 22kW + 3.6kW

Key features:

*2 T2S Sockets + 1 Type E Socket with safety shutters
*Current (input and output): 2x32A (16A, 13A, 10A Adjustable)
*Power ratings: 3.7 kW / 7.4 kW / 11 kW / 22 kW
*Black powder-coated galvanized steel body
*Tri-color LED
*OLED canopy
*4.3-inch LCD screen
*Socket locking system
*Electronic locks
*MID meters
*4G/WiFi/Ethernet router
*RFID (2 cards per socket included)
*Plug and Charge ISO 15118
*OCPP 1.6 Ethernet / 4G
*Smartlife application
*DLM + DLB (load balancing + group management)
*IP54 and IK10
*Residual current protection (AC 30mA and DC 6mA)
*Class I + PEN Protection module (Earth + Neutral protection)
*Overvoltage / Undervoltage protection – Temperature protection – Overcurrent protection
*Certifications: CE / UKCA / RoHS and standards EN IEC 61851, EN 62196
*Installation: Ground-mounted with supplied base
*Operating temperature: -25 °C ~ 50 °C – Humidity: 3% ~ 95% – Altitude: <2000 m

JUPITER PEDESTAL box contents:

• 1 PEDESTAL
• 4 RFID cards
• 1 ground anchoring block
• Bolts and hardware
• Electrical protections
• Fully wired

Specifications:
- 2 lateral T2S sockets – 22 kW
- Rear Type E socket (European) – 3.6 kW
- Residual current protection (AC 30mA Type A, DC 6mA)
- O-Pen protection
- Overcurrent, overvoltage, undervoltage, and temperature protection
- MID meters
- Internal current adjustment / limiting via switches (10-13-16-32A)
- Power adjustable up to 7.4 kW (single-phase) / 22 kW (three-phase) via the SmartLife App
- Dynamic load balancing (DLB) from the main panel (400A per phase)
- Charging group management (1 Master - 9 Slaves)
- RFID
- Plug and charge
- 4G/WiFi/Ethernet router
- OCPP 1.6 standard
- Free Smart Wi-Fi app developed for JUPITER
- Integrated LED charge status indicator
- Sockets with tricolor LED
- 4.3-inch LCD screens
- Socket locks / electronic locks
- OLED roof light with built-in light sensor
- CE and UKCA certified · IP65 (housing) - IP54 (sockets)
- Corrosion and fire resistance
- Eligible for tax credit and ADVENIR program
- 3-year warranty

Advanced features of the SmartLife App:
- Connection to the router’s Wi-Fi
- Control of charging functions and data on-screen, for each connected phase
- Switch between RFID / Plug and Charge / Scheduling modes
- Scheduling of charging cycles / times
- Entry of subscribed electric power – Dynamic Load Balancing (DLB)
- Adjustment of operating current (6 to 32A)
- RFID card number registration
- Configuration of IP parameters and OCPP 1.6 ID
- Configuration of LAN addresses for charger group
- Charging data logging
- Charger sharing via link (SMS, Email, Messenger, WhatsApp, etc.): Add user / client
- Fleet management of JUPITER chargers by the installer (e.g., for after-sales service or maintenance contracts)
