63A Pack – Schneider Electric – JUPITER Electrical Protection – Three-phase – Dual Socket
Schneider Electric Pack - AT WGB - 63A Type B electrical protection for JUPITER dual-socket charging station: three-phase up to 22 kW + single-phase 3.6 kW. (Type B residual current protection and four-pole magnetic-thermal circuit breaker)
This product must be installed by an IRVE-certified professional, in accordance with the regulations in force in the country of installation.
Share
Contents of this pack:
Mandatory electrical protections to be installed on a dedicated line.
Contents of this pack:

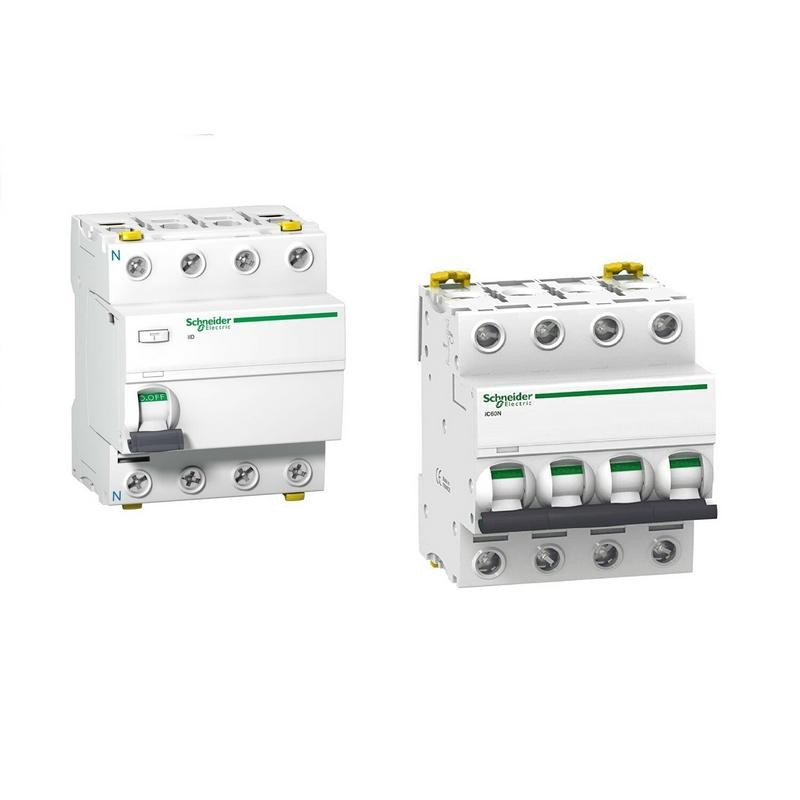

This pack includes:
- 1 Schneider Acti9 iID residual current device Type A - 3P+N - 63A - 30mA
- 1 Schneider Acti9 iC magnetic-thermal circuit breaker 3P+N - 50A or 63A - Curve C
Schneider Electrical Protection Pack for JUPITER EV charger – dual power outlet – three-phase up to 22 kW + single-phase 3.6 kW
The following electrical protections are mandatory and must be installed on a dedicated line.
Protections to install for three-phase connection of JUPITER dual outlet:
- Residual current device 63A - Type A or Hpi - 3P+N - 30mA
- Circuit breaker 50A or 63A Curve C - 3P+N - Breaking capacity 10kA
1/ Schneider 63A Three-Phase RCD
Schneider Acti9 iID Residual Current Device Type A - 3P+N - 63A - 30mA is essential for any JUPITER dual outlet three-phase installation.
It compares incoming and outgoing current and cuts the circuit if the difference exceeds 30mA. This function protects people from electric shocks.
It must be paired with a circuit breaker.
Installation
It must be installed on a dedicated line specifically for the charging station, after the main RCD of the electrical panel.
The charging station must have its own dedicated line, with its own circuit breaker and RCD.
Main Features
- Type: A
- Poles: 3P+N
- Rated current: 63A max
- Rated residual operating current: 30mA
2/ Schneider Three-Phase Circuit Breaker 50A or 63A
Schneider Acti9 iC Magnetic-Thermal Circuit Breaker - 3P+N - 50A or 63A - Curve C is essential for any charger installation. It protects the system against overcurrents and short circuits.
Its curve C is suited for high-current devices like EV chargers. Its high breaking capacity and fast trip mechanism ensure safety, reliability, and long service life.
It must be paired with a residual current device (compatible with Schneider Acti9 iID).
Installation
It must be installed in the electrical panel, on the RCD dedicated to the charging station. The charging station must have its own dedicated line, with its own circuit breaker and RCD.
Main Features
- Number of poles: 3P+N
- Power supply: 400V
- Breaking current: 50A or 63A
- Breaking capacity: 6-10kA
- Curve: C
Mandatory electrical protections to be installed on a dedicated line.
Single-phase installation:
- Residual current device: Type B, 30mA, 2P or 1P+N, max. 63A (a Type A, F or Hpi is sufficient, instead of Type B, if the charging station is equipped with a DC leakage current detector)
- Circuit breaker: Minimum Curve C, minimum breaking capacity 3kA, 2P or 1P+N, 16 to 40A (choose 3 to 8A more than the rated current of the charging station)
Three-phase installation:
- Residual current device: Type B, 30mA, 4P, max. 63A (a Type A, F or Hpi is sufficient, instead of Type B, if the charging station is equipped with a DC leakage current detector)
- Circuit breaker: Minimum Curve C, minimum breaking capacity 3kA, 4P or 3P+N, 16 to 40A (choose 3 to 8A more than the rated current of the charging station)
Cable cross-sections for connections, according to French standards NF C15-100 and NF C15-722:
- Wallbox charging station 16A or 16A socket, cable length less than 100m: cable cross-section 2.5mm²
- Wallbox charging station 32A, cable length less than 100m: cable cross-section 10mm²
Overview of cable cross-sections for connections (NF C15-100 and NF C15-722):
| Rated current | Circuit breaker rating | Minimum cross-section | |
| Charging station or socket | 16A | 20A | 2.5mm² |
| Charging station | 32A | 40A | 10mm² |
| Charging station | 63A | 80A | 16mm² |
